Name: TAPPI T498 Tissue Softness Tester with 10-1000mN Measuring Range 1.2mm/s Test Speed and 15s Measurement Time
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: СЛ-П22
Price: 4,500.00 USD
Availability: InStock

Главная страница Продукция оборудование для испытаний лаборатории

TAPPI T498 Tissue Softness Tester with 10-1000mN Measuring Range 1.2mm/s Test Speed and 15s Measurement Time

Подробная информация о продукте:

Место происхождения:	КИТАЙ
Фирменное наименование:	SKYLIE
Сертификация:	CE, Calibration Certificate, Rosh, CO...
Номер модели:	СЛ-П22

Оплата и доставка Условия:

Количество мин заказа:	1
Упаковывая детали:	Экспортированный фанерный пакет
Время доставки:	15 рабочих дней
Условия оплаты:	L/C, D/P, D/A, T/T, Western Union, Moneygram
Поставка способности:	20-30 /месяц

контакт

Подробное описание продукта

Измеряя ряд:	(10 ~ 1000) мН	Тестовая скорость:	1.2 мм/с
Время измерения:	15 лет	Разрешение:	1 мН
точность:	± 1%	Глубина проникновения зонда:	8 +0,5 мм
Образец платформы узкой ширины:	5 мм, 6,35 мм, 10 мм, 20 мм	Ошибка параллельности с обеих сторон прорези стола для образцов:	≤0.05mm
Электропитание:	220 В ± 22 В переменного тока, 50 Гц
Выделить:	10-1000mN Measuring Range Tissue Softness Tester , 1.2mm/s Test Speed TAPPI T498 Test Machine , 15s Measurement Time Softness Testing Equipment

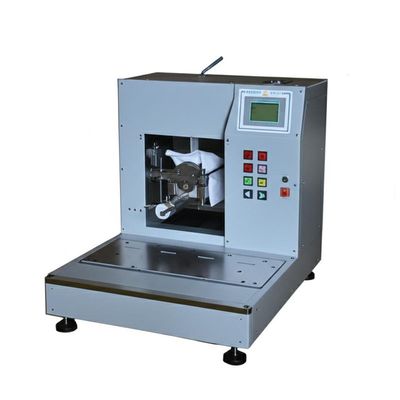

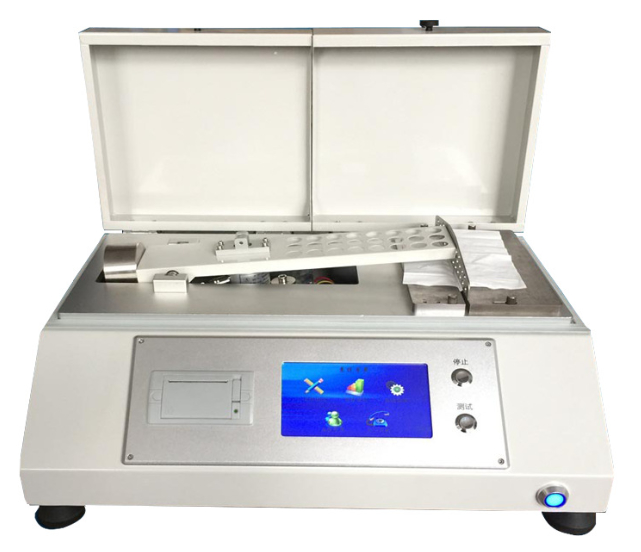

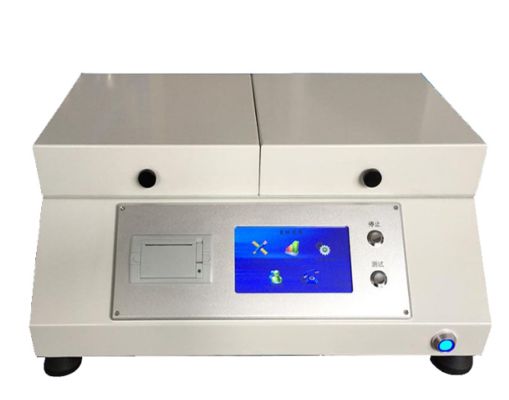

TAPPI T498 Tissue Softness Test Machine

Product Overview

The Tissue Softness Tester is a precision instrument that simulates hand feel to measure material softness. Designed in compliance with GB8942 national standard for paper softness determination, it's ideal for testing medium and high-grade toilet paper, tobacco sheets, fabrics, and similar sheet materials.

Key Features

Microcomputer-controlled digital test system with touch screen interface
Bilingual (Chinese/English) operating system with intuitive controls
Advanced technology with reliable performance and easy operation
Ideal for paper manufacturing, scientific research, and quality inspection

Test Principle

The instrument measures softness by pressing a plate probe into the sample to a depth of approximately 8mm. The softness value (in millinewtons) represents the sum of the sample's maximum anti-bending force vector and the friction between sample and gap. Lower values indicate softer materials.

Compliance Standards

GB/T 8942 QB/T 1060 ASTM D2923 ASTM D6828-02 TAPPI T498 INDA IST 90.3 EDANA WSP 90.3

Technical Specifications

Parameter	Specification
Measuring range	(10 ~ 1000) mN
Test speed	1.2mm/s
Measurement time	15s
Resolution	1mN
Accuracy	±1%
Probe penetration depth	8 +0.5mm
Sample platform narrow width	5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit	≤0.05mm
Display	5-inch touch screen with curve display (50,000 hour lifespan)
Power supply	AC 220V ± 22V, 50Hz
Transport packaging	Wooden outer box with internal buffer material
